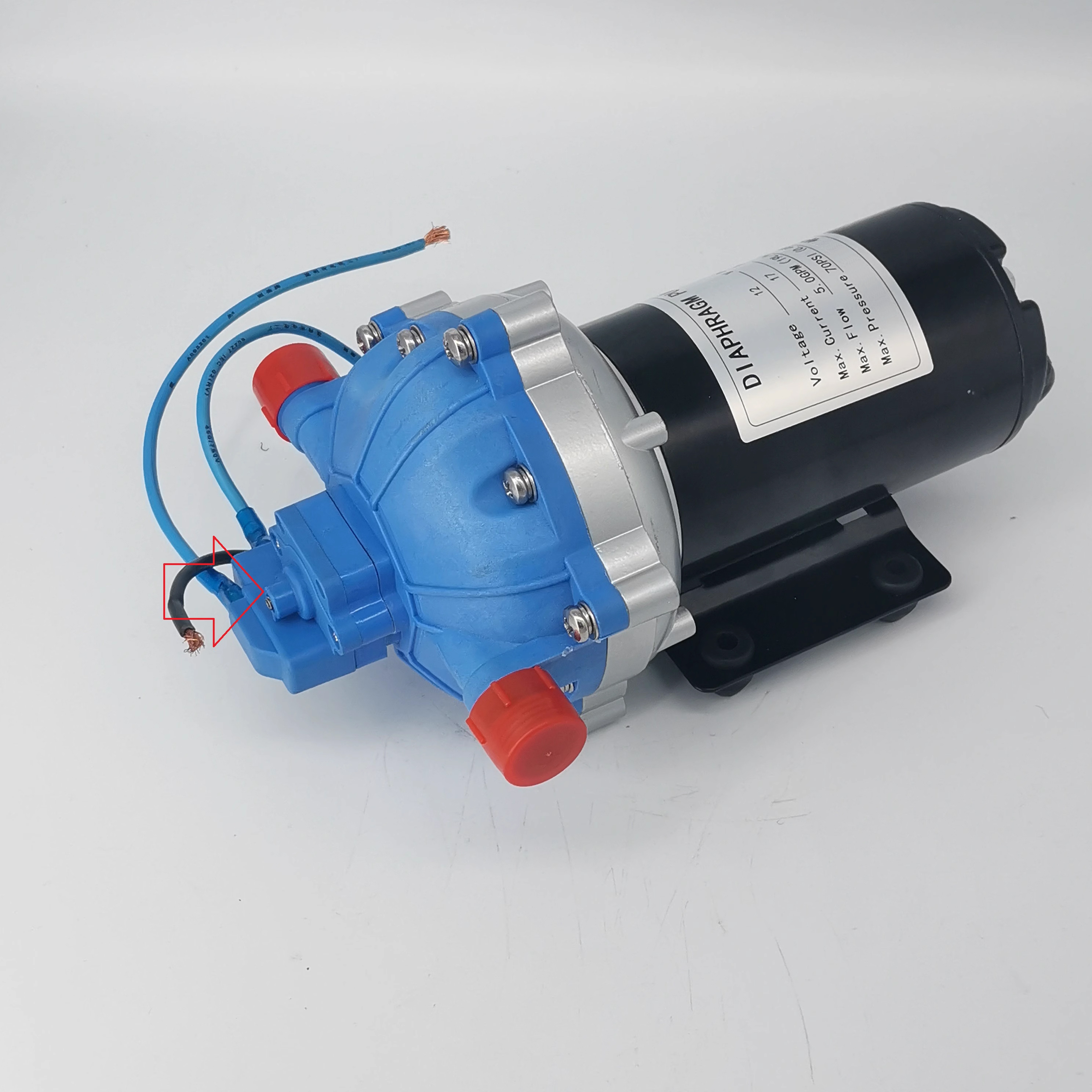

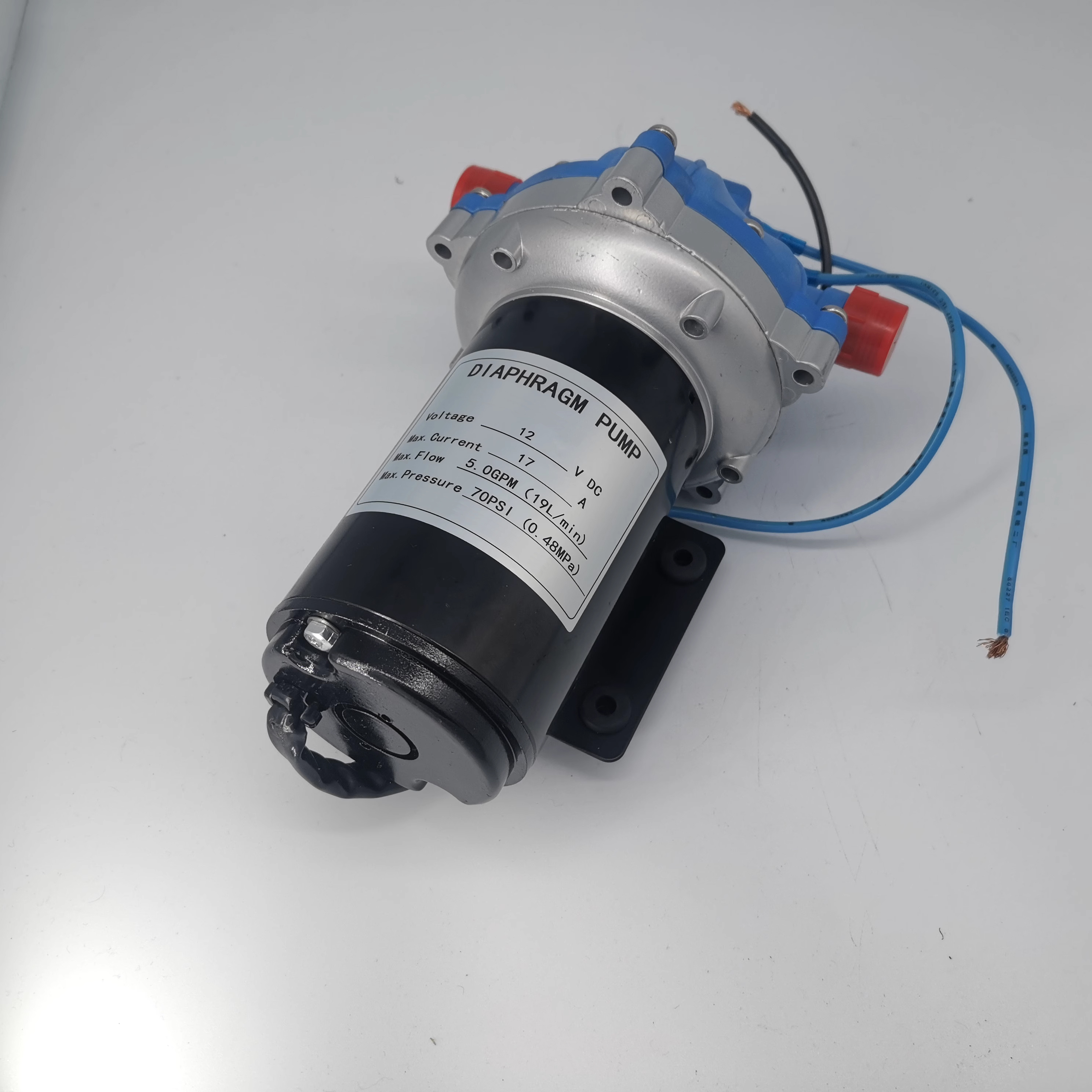

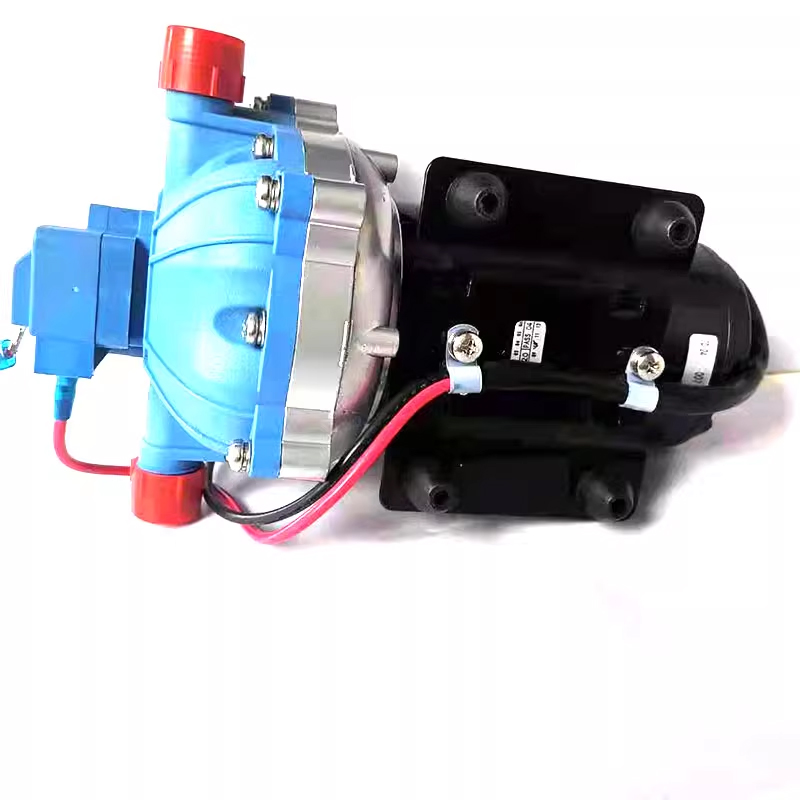

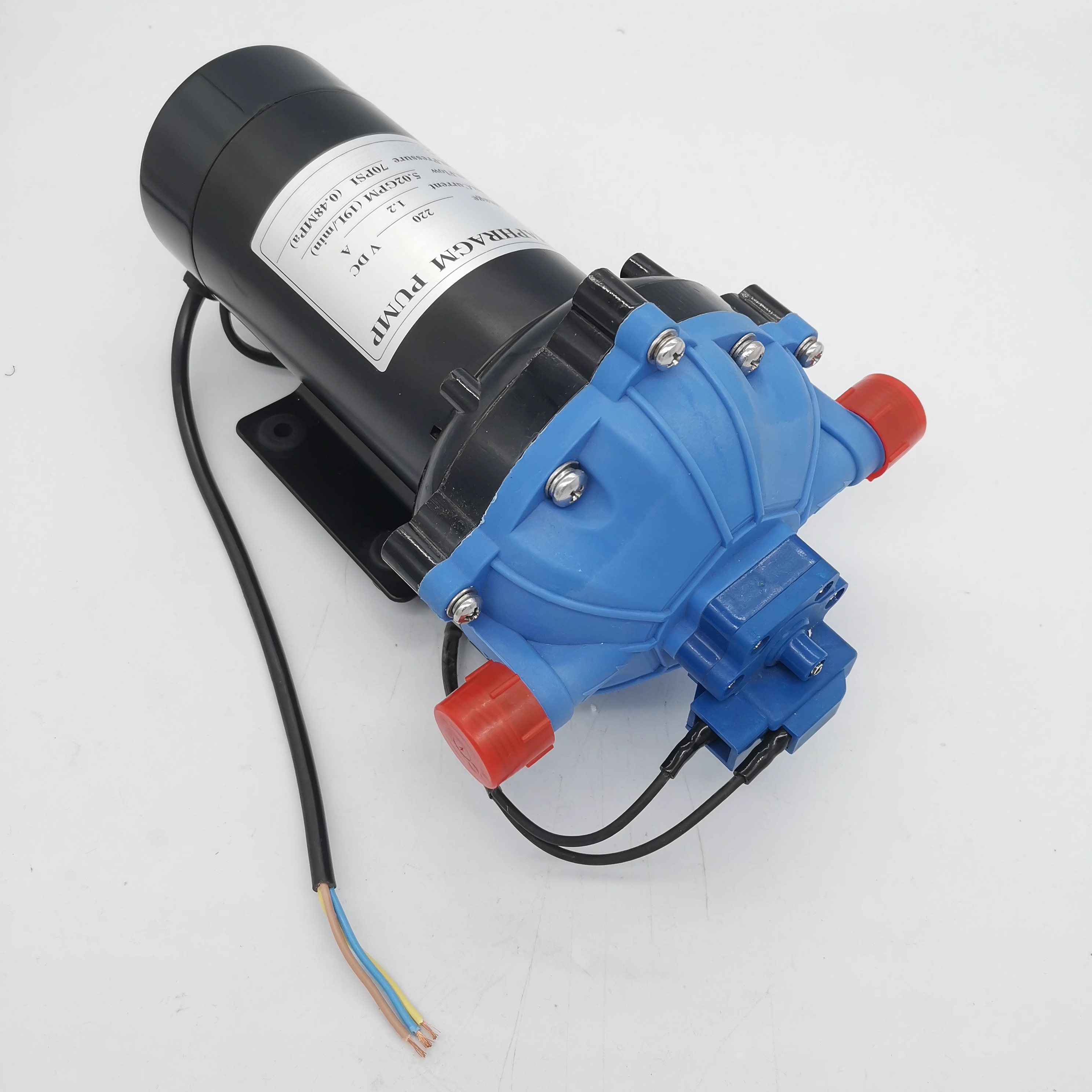

FLOWGATE Diaphragm Pump KFL-56 Series

Built-in micro switch to protect the pump from damage during operation, long service life and good durability; Small size, easy to carry, easy to move and install; With self-priming function, allowing dry operation; The medium temperature can reach 60°C; Low noise, corrosion resistance, high pressure, self-priming height 2-4m, various options; Use safe low voltage to ensure personal safety.

FLOWGATE Automatic Pressure Control High Flow Diaphragm Pump KFL-56 Series Electric DC 12V 24V Optional 70PSI 20.8LPM/5.5GPM for RV Water Supply Marine Deck Washdown Agriculture Sprawing Water Treatment







FLOWGATE diaphragm pump adopts new technology components and new processes to meet the needs of spraying and medium transportation in various industries. The products are classified in series, from small flow to large flow series. Basically, each series has 12V and 24V voltage, and It is divided into quick-change and threaded water inlet and outlet ports. The quick-change connector can be quickly connected and installed. The diaphragm pump can work continuously for 24 hours without any external cooling device.



The FLOWGATE series miniature electric diaphragm pump has a good design scheme to reduce the wear of the internal parts of the product, thereby ensuring the long service life of the pump, high-quality materials such as imported micro switches, the diaphragm uses Santoprene produced by DuPont, and High-quality fluorine rubber has superior corrosion resistance and chemical resistance. The unique pressure switch setting used ensures that the pump slows down in the circulation process, reduces the damage to the micro switch and the motor, and ensures the quality of the product, stable performance, and longevity The important reason is long-lasting, and when the spray head or spray gun is turned off, the pump can automatically stop.

Features:

1. Built-in micro switch to protect the pump from damage during operation, long service life and good durability
2. Small size, easy to carry, easy to move and install
3. With self-priming function, allowing dry operation
4. The medium temperature can reach 60°C
5. Low noise, corrosion resistance, high pressure, self-priming height 2-4m, various options
6. Use safe low voltage to ensure personal safety

Applications:

1. Transportation of oils, acids, alkalis, corrosive and very temperature liquids or media, high-altitude spraying, fruit tree lawn pesticide irrigation, etc.
2. High-pressure cleaning vehicle spraying, small cleaning vehicle spraying, car washing, city cleaning, etc.
3. Pressurized water supply for high-rise buildings, pressurized fire-fighting equipment, long-distance transportation, and ship water supply



STANDARD PUMP CONFIGURATIONS

Model

Volts

Amps

(A)

Fuse

(A)

Flow

(LPM/GPM)

Pressure

(PSI/bar)

Suction

(M)

Valve Inlet/Outlet Ports

Weight

(Kg)

KFL-5650A 12V DC 17 18 18/4.8 70/4.8 5 EPDM/VITON 1/2" NPTF; 3/4" Quick attach 2.5
KFL-5650B 24V DC 9 11 19/5.0 70/4.8 5 EPDM/VITON 1/2" NPTF; 3/4" Quick attach 2.5
KFL-5655A 12V DC 19 20 20.8/5.5 70/4.8 3.6 EPDM/VITON 1/2" NPTF; 3/4" Quick attach 2.5
KFL-5655B 24V DC 10 12 20.8/5.5 70/4.8 3.6 EPDM/VITON 1/2" NPTF; 3/4" Quick attach 2.5
KFL-5650S 220V AC 0.8 1 19/5.0 70/4.8 5 EPDM/VITON 1/2" NPTF; 3/4" Quick attach 2.8

Itmes Description
1 Motor
2 Diaphragm Assembly
3 Valve plate Assembly
4 Pump head Assembly
5 Pressure switch Assembly
